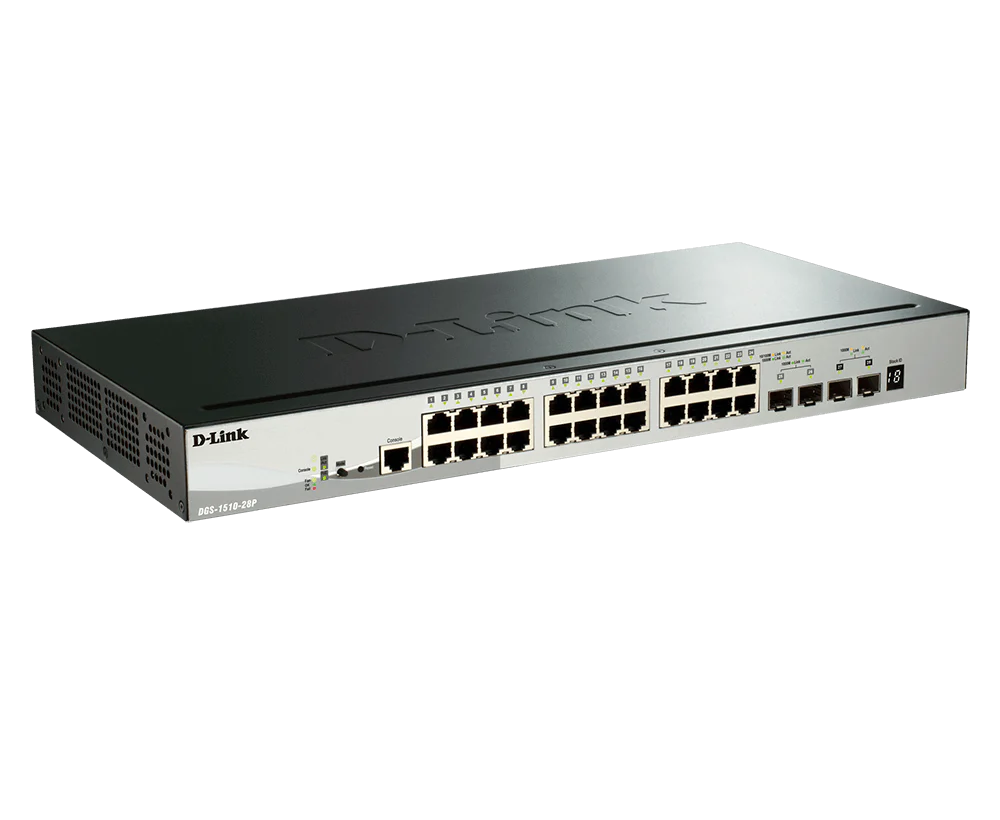

Gigabit Stackable Smart Managed PoE (193W) Switch with 10G Uplinks - DGS-1510-28P
Flexible 10 Gigabit connectivity for SME and SMB environments.
- 24 x 10/100/1000BASE-T PoE ports
- 2 x Gigabit SFP ports
- 2 x 10G SFP+ ports
- Layer 2 management and security with Layer 3 capabilities
- Static Routing and MSTP
- 193 W PoE budget
- Switch Capacity: 92 Gbps
- Max. Packet Forwarding Rate: 68.45 Mpps
- Maximum Heat Dissipation: 813.97 BTU/hr
- Maximum Power Consumption: 238.7 W (PoE on) / 29 W(PoE off)
- MTBF: 275,428 hours
Industry Standard CLI with 10G SFP+ stacking
The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.
10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.
Max PoE with budget up to 193W
PoE lets you simplifying deployments with IP cameras, VoIP phones, wireless access points, and other PoE powered devices.
Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.
- When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.
Specifications
| 1000Base-T PoE Interface | 24 |
|---|---|
| 1000M SFP Interface | 2 |
| 10G SFP+ Interface | 2 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| 10/100/1000BASE-T PoE ports | 24 |
| SFP ports | 2 |
| 10G SFP+ ports | 2 |
| Switch Capacity | 92 Gbps |
| Max. Packet Forwarding Rate | 68.45 Mpps |
| Dimension | 440mm x 210mm x 44mm |
| Weight | 2.54 kg |
| Operation Temperature | -5 -50°C |
| Storage Temperature | -20-70°C |
| Operation Humidity | 0% ~ 95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Maximum Power Consumption | 238.7 W (PoE on)<br>29 W(PoE off) |
| Standby Power Consumption | 22.7 W/100V , 21 W/240V |
| Maximum Heat Dissipation | 813.97 BTU/hr |
| Acoustic | 46.4 dB(A) |
| MTBF | 275,428 hours |
| Power Input | 100 - 240 VAC |
| CPU Speed | 400MHz |
| DRAM Size | 256MB |
| Flash Memory Size | 32MB |
| Packet Buffer Size | 1.5MB |
| FAN | 2 DC Fan |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| Power Saving By System Hibernation | Yes |
| Time-based PoE | Yes |
| Maximum PoE Budget | 193W |
| PD Alive | Yes |
| PoE Budget | 193 W |
| Physical Stacking | Yes |
| Physical Stacking Bandwidth | 40 G |
| Units Per Physical Stack | 6 |
| D-Link Single IP Management (SIM) | Yes |
| Units Per SIM Stack | 32 |
| MAC Address Table Size | 16384 |
| Black Hole MAC Address | Yes |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1s Multiple Spanning Tree (MSTP) | Yes |
| Root Restriction | Yes |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Link Aggregation Group Per Device | 32 |
| Max Port Per Link Aggregation Group | 8 |
| G.8032 ERPS | Yes |
| Port Mirroring | Yes |
| Flow-based (ACL) mirroring | Yes |
| Jumbo Frame | 9216 |
| Loopback Detection (LBD) | Yes |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 512 |
| IGMP Snooping Fast Leave | Yes |
| IGMP Proxy Reporting | Yes |
| MLD Snooping | Yes |
| MLD Snooping Groups | Yes |
| MLD Snooping Fast Leave | Yes |
| MLD Proxy Reporting | Yes |
| 802.1Q VLAN | Yes |
| VLAN Groups | 4094 |
| Port-based VLAN | Yes |
| 802.1v Protocol-based VLAN | Yes |
| MAC-based VLAN | Yes |
| Voice VLAN | Yes |
| Auto Surveillance VLAN | Yes, 2.1 |
| GVRP | Yes |
| Asymmetric VLAN | Yes |
| IP Interface | Yes |
| Max Number of IP Interface | 16 |
| ARP | Yes |
| ARP Entries | 512 |
| Gratuitous ARP | Yes |
| ND Entries | Yes |
| UDP Helper | Yes |
| Default Route | Yes |
| Static Route | Yes |
| Number of Queue | 8 |
| Class of Service (CoS) | Yes |
| Remark 802.1p priority | Yes |
| Remark ToS/DSCP | Yes |
| Rate Limiting | Yes |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Deficit Round Robin (DRR) | Yes |
| SPQ + WRR | Yes |
| Port-based Bandwidth Control | Yes |
| Max Access Control List (ACL) Entries | Yes |
| MAC Access List | Yes |
| IP Access List | Yes |
| IPv6 Access List | Yes |
| Time based ACL | Yes |
| SSH | Yes |
| Port Security | Yes |
| SSL | Yes |
| Traffic Segmentation | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| IP Source Guard | Yes |
| DHCP Snooping | Yes |
| IPv6 Snooping | Yes |
| DHCPv6 Guard | Yes |
| Dynamic ARP Inspection (DAI) | Yes |
| IPv6 ND Inspection | Yes |
| IPv6 Route Advertisement (RA) Guard | Yes |
| Duplicate Address Detection (DAD) | Yes |
| DHCP Server Screening | Yes |
| D-Link Safeguard Engine | Yes |
| ARP Spoofing Prevention | Yes |
| BPDU Attack Protection | Yes |
| DoS Attack Prevention | Yes |
| 802.1X | Yes |
| Port based 802.1X Authentication | Yes |
| Host based 802.1X Authentication | Yes |
| Identity Driven 802.1X Policy Assignment | Yes |
| Web-based Access Control (WAC) | Yes |
| Port based WAC Authentication | Yes |
| Host based WAC Authentication | Yes |
| Identity Driven WAC Policy Assignment | Yes |
| Japanese Web-based Access Control (JWAC) | Yes |
| Port based JWAC Authentication | Yes |
| Host based JWAC Authentication | Yes |
| Identity Driven JWAC Policy Assignment | Yes |
| MAC-based Access Control (MAC) | Yes |
| Port based MAC Authentication | Yes |
| Host based MAC Authentication | Yes |
| Identity Driven MAC Policy Assignment | Yes |
| Compound Authentication | Yes |
| Guest VLAN | Yes |
| Authentication for Management Access | Yes |
| Privilege Level for Management Access | 5 |
| RADIUS | Yes |
| TACACS+ | Yes |
| RADIUS Accounting | Yes |
| TACACS+ Accounting | Yes |
| Cable Diagnostics | Yes |
| Optical Transceiver Digital Diagnostic Monitoring (DDM) | Yes |
| Network Time Protocol (NTP) | Yes |
| Simple Network Time Protocol (SNTP) | Yes |
| Web-based GUI | Yes |
| Command Line Interface (CLI) | Yes |
| Telnet Server | Yes |
| Telnet Client | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| TFTP Client | Yes |
| ZModem | Yes |
| System Log | Yes |
| LLDP | Yes |
| RMONv1 | Yes |
| LLDP-MED | Yes |
| DHCP/BootP Client | Yes |
| D-Link Discover Protocol (DDP) | Yes (v0.25) |
| DHCP relay | Yes |
| DHCP Auto-configuration | Yes |
| Flash file system | Yes |
| Multiple Images | Yes |
| Multiple Configurations | Yes |
| Editable Login Banner | Yes |
| Editable System Prompt | Yes |
| DNS Client | Yes |
| Debug Command | Yes |
| Ping | Yes |
| Password Encryption | Yes |
| sFlow | Yes |
| Traceroute | Yes |
| D-Link Network Assistant | Yes |
| Smart Wizard | Yes |
| SSH | Yes |
| SSL | Yes |
| Store-and-Forwarding | Yes |
