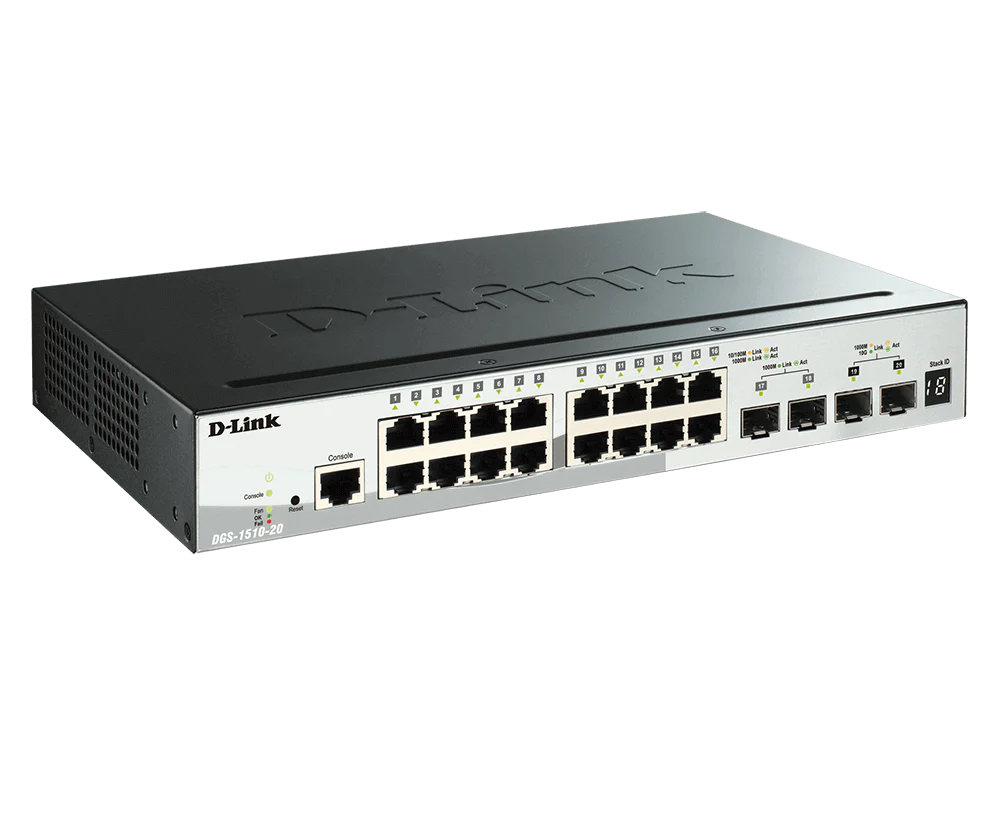

20-port Stackable Gigabit Switch including 2 x SFP ports & 2 x 10GbE SFP+ ports - DGS-1510-20
Flexible 10 Gigabit connectivity for SME and SMB environments.
- 16 x 10/100/1000BASE-T ports
- 2 x Gigabit SFP ports
- 2 x 10G SFP+ ports
- Layer 2 management and security with Layer 3 capabilities
- Static Routing and MSTP
- Switch Capacity: 76 Gbps
- Max. Packet Forwarding Rate: 56.54 Mpps
- Maximum Heat Dissipation: 41.60 BTU/hr
- Maximum Power Consumption: 20.3 W
- MTBF: 882,152 Hours
Industry Standard CLI with 10G SFP+ stacking
The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.
10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.
Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.
- When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.
Specifications
| Host based MAC Authentication | Yes |
|---|---|
| Identity Driven MAC Policy Assignment | Yes |
| Compound Authentication | Yes |
| Guest VLAN | Yes |
| Authentication for Management Access | Yes |
| RADIUS | Yes |
| RADIUS Accounting | Yes |
| Privilege Level for Management Access | 5 |
| Port based 802.1X Authentication | Yes |
| 802.1X | Yes |
| Host based 802.1X Authentication | Yes |
| Identity Driven 802.1X Policy Assignment | Yes |
| Web-based Access Control (WAC) | Yes |
| Port based WAC Authentication | Yes |
| Japanese Web-based Access Control (JWAC) | Yes |
| Identity Driven WAC Policy Assignment | Yes |
| Host based WAC Authentication | Yes |
| Host based JWAC Authentication | Yes |
| Port based JWAC Authentication | Yes |
| Identity Driven JWAC Policy Assignment | Yes |
| MAC-based Access Control (MAC) | Yes |
| TACACS+ | Yes |
| Port based MAC Authentication | Yes |
| TACACS+ Accounting | Yes |
| Max Access Control List (ACL) Entries | Yes |
| MAC Access List | Yes |
| IP Access List | Yes |
| IPv6 Access List | Yes |
| Time based ACL | Yes |
| Port-based Bandwidth Control | Yes |
| Class of Service (CoS) | Yes |
| SSH | Yes |
| SSL | Yes |
| G.8032 ERPS | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| 802.3x Flow Control | Yes |
| Store-and-Forwarding | Yes |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By System Hibernation | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| 10/100/1000BASE-T ports | 16 |
| SFP ports | 2 |
| 10G SFP+ ports | 2 |
| 1000Base-T Interface | 16 |
| 1000M SFP Interface | 2 |
| 10G SFP+ Interface | 2 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| CPU Speed | 400MHz |
| DRAM Size | 256MB |
| Flash Memory Size | 32MB |
| Packet Buffer Size | 1.5MB |
| FAN | 1 DC Fan |
| Jumbo Frame | 9216 |
| Loopback Detection (LBD) | Yes |
| MAC Address Table Size | 16384 |
| Black Hole MAC Address | Yes |
| IGMP Snooping | Yes |
| IGMP Snooping Fast Leave | Yes |
| IGMP Proxy Reporting | Yes |
| Max IGMP Snooping Groups | 512 |
| MLD Snooping | Yes |
| MLD Snooping Groups | Yes |
| MLD Snooping Fast Leave | Yes |
| MLD Proxy Reporting | Yes |
| IP Interface | Yes |
| Max Number of IP Interface | 16 |
| ARP | Yes |
| ARP Entries | 512 |
| Gratuitous ARP | Yes |
| ND Entries | Yes |
| UDP Helper | Yes |
| Default Route | Yes |
| Static Route | Yes |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Link Aggregation Group Per Device | 32 |
| Max Port Per Link Aggregation Group | 8 |
| Multiple Images | Yes |
| Traceroute | Yes |
| Editable Login Banner | Yes |
| Multiple Configurations | Yes |
| Command Line Interface (CLI) | Yes |
| Web-based GUI | Yes |
| Telnet Client | Yes |
| Telnet Server | Yes |
| TFTP Client | Yes |
| SNMP Trap | Yes |
| SNMP | Yes |
| System Log | Yes |
| ZModem | Yes |
| LLDP-MED | Yes |
| LLDP | Yes |
| RMONv1 | Yes |
| D-Link Discover Protocol (DDP) | Yes (v0.25) |
| DHCP/BootP Client | Yes |
| DHCP relay | Yes |
| DHCP Auto-configuration | Yes |
| Editable System Prompt | Yes |
| Flash file system | Yes |
| Password Encryption | Yes |
| Debug Command | Yes |
| DNS Client | Yes |
| Ping | Yes |
| D-Link Network Assistant | Yes |
| sFlow | Yes |
| Smart Wizard | Yes |
| Flow-based (ACL) mirroring | Yes |
| Port Mirroring | Yes |
| Cable Diagnostics | Yes |
| Optical Transceiver Digital Diagnostic Monitoring (DDM) | Yes |
| Switch Capacity | 76 Gbps |
| Max. Packet Forwarding Rate | 56.54 Mpps |
| Remark 802.1p priority | Yes |
| Remark ToS/DSCP | Yes |
| Rate Limiting | Yes |
| Power Input | 100 - 240 VAC |
| Number of Queue | 8 |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Deficit Round Robin (DRR) | Yes |
| SPQ + WRR | Yes |
| SSH | Yes |
| SSL | Yes |
| Port Security | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| IP Source Guard | Yes |
| DHCP Snooping | Yes |
| IPv6 Snooping | Yes |
| Dynamic ARP Inspection (DAI) | Yes |
| DHCPv6 Guard | Yes |
| IPv6 Route Advertisement (RA) Guard | Yes |
| IPv6 ND Inspection | Yes |
| Duplicate Address Detection (DAD) | Yes |
| D-Link Safeguard Engine | Yes |
| DHCP Server Screening | Yes |
| ARP Spoofing Prevention | Yes |
| BPDU Attack Protection | Yes |
| DoS Attack Prevention | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1s Multiple Spanning Tree (MSTP) | Yes |
| Root Restriction | Yes |
| Physical Stacking | Yes |
| Physical Stacking Bandwidth | 40 G |
| Units Per Physical Stack | 6 |
| Maximum Heat Dissipation | 41.60 BTU/hr |
| Acoustic | 43.8 dB(A) |
| Dimension | 280mm x 180mm x 44mm |
| Maximum Power Consumption | 20.3 W |
| MTBF | 882,152 hours |
| Operation Humidity | 0% ~ 95% RH |
| Operation Temperature | -5 -50°C |
| Standby Power Consumption | 11.4 W/100V, 12.2 W/240V |
| Storage Humidity | 0% ~ 95% RH |
| Storage Temperature | -20-70°C |
| Weight | 1.24 kg |
| Network Time Protocol (NTP) | Yes |
| Simple Network Time Protocol (SNTP) | Yes |
| D-Link Single IP Management (SIM) | Yes |
| Units Per SIM Stack | 32 |
| 802.1Q VLAN | Yes |
| VLAN Groups | 4094 |
| Port-based VLAN | Yes |
| 802.1v Protocol-based VLAN | Yes |
| MAC-based VLAN | Yes |
| Voice VLAN | Yes |
| Auto Surveillance VLAN | Yes, 2.1 |
| GVRP | Yes |
| Asymmetric VLAN | Yes |
